October 8, 2023

Generate Open Graph images using Next.js App Router

next.js

typescript

Overview

Recently, I was looking to design my own Open Graph images for this very blog, and in doing so, I found out that Next.js supports dynamically generating images for SEO purposes. I figured this would be way faster than manually designing one each time, plus helps avoid needing to manually add and store all these images in a /public folder.

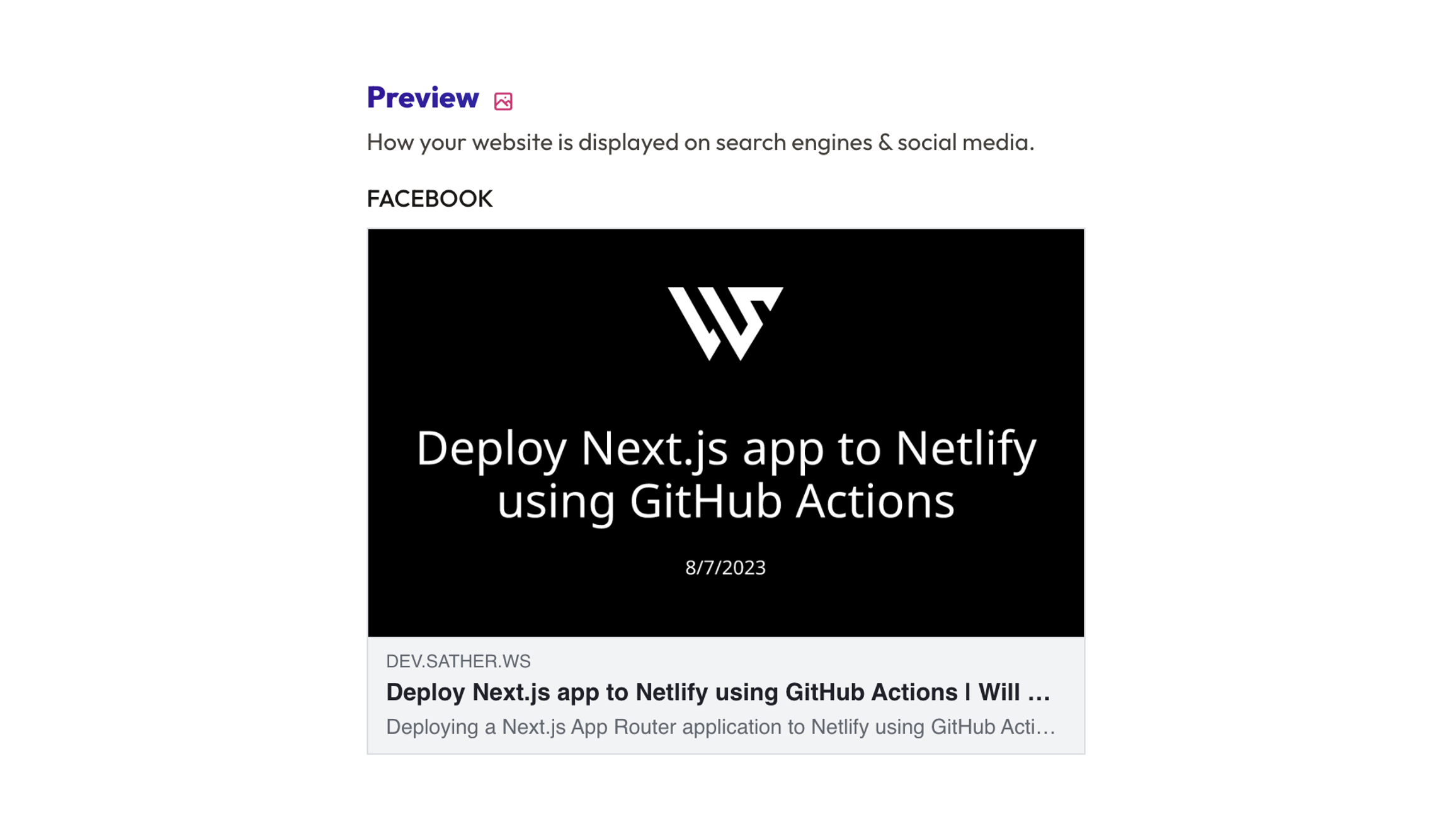

For a quick background, Open Graph images are the image 'preview' when you see a link. These commonly are shown on social media, text messages, and other previews. You can read more about the protocol at The Open Graph Protocol. I also have used Opengraph.xyz to preview websites and also see some examples. For context, this is what a blog post on this site looks like at the time of writing it (using the code below).

Open Graph Preview

Generating the image

Using the Next.js documentation, I was able to customize it a little bit and come up with a generic/default Open Graph image for the entire site, located at the root of the App Router.

/app/opengraph-image.tsx
import { ImageResponse } from "next/server";
import Logo from "@/components/shared/logo";

export const size = {
  width: 1200,
  height: 630,
};

export const alt = "Will Sather";
export const contentType = "image/png";

export default async function DefaultOpengraphImage() {
  return new ImageResponse(
    (
      <div tw="flex h-full w-full flex-col items-center justify-center bg-black">
        <div tw="flex flex-none items-center justify-center h-[160px] w-[160px]">
          <Logo width="64" height="58" fill="white" />
        </div>
        <div tw="flex items-center justify-center mt-12 mx-16">
          <h1 tw="text-7xl text-center font-bold text-white font-sans font-bold">
            Will Sather
          </h1>
        </div>
      </div>
    ),
    size
  );
}
tsx

However, I wanted to take it one step further and actually create dynamic pages for each blog post page, so that the generated image would include the title and date included in the MDX FrontMatter data. So, nested in the /blog/posts/opengraph-image.tsx there is a second OpenGraph Image component that Next.js uses to generate the Open Graph image using the params?.slug to load the blog post and the frontmatter data to generate the correct image.

/app/blog/posts/[slug]/opengraph-image.tsx
import { ImageResponse } from "next/server";
import { getPost } from "@/lib/blog/posts";
import Logo from "@/components/shared/logo";

export const size = {
  width: 1200,
  height: 630,
};

export const alt = "Blog | Will Sather";
export const contentType = "image/png";

export default async function OpengraphImage({
  params,
}: {
  params: { slug: string };
}) {
  const { frontMatter } = await getPost(params?.slug);

  return new ImageResponse(
    (
      <div tw="flex h-full w-full flex-col items-center justify-center bg-black">
        <div tw="flex flex-none items-center justify-center h-[160px] w-[160px]">
          <Logo width="64" height="58" fill="white" />
        </div>
        <div tw="flex items-center justify-center mt-12 mx-16">
          <h1 tw="text-7xl text-center font-bold text-white font-sans font-bold">
            {frontMatter.title}
          </h1>
        </div>

        <div tw="flex items-center justify-center mx-16">
          <h2 tw="text-3xl text-center font-bold text-white font-sans font-bold">
            {frontMatter.date.toLocaleDateString()}
          </h2>
        </div>
      </div>
    ),
    size
  );
}
tsx

Complete 🎉

You can find all the code on this website's GitHub repository, hopefully this is helpful - I thought this was so cool!
